Kennedy Technology Group offers a wide array of GPS interface devices and harnesses. They can be used in conjunction with all Kennedy audio interface modules. This means that you can integrate the GPS with a multitude of other devices, such as MP3 players and radar detectors.

Currently Kennedy supports the following devices and motorcycle audio systems:

Supported devices:



Supported Motorcycle Audio Systems:



In order to decide which components you will need,

1. Determine how you want to use the GPS

A. Cell phone will not be used, or cell phone is not supported by GPS

B. Cell phone will, or someday may be, used and is supported by GPS

2. From the appropriate column in Table 1 (below) select the bike audio system to connect to the GPS.



The Configuration Guides in Table 1 have flowcharts labeled to help you decide what specific base components you need depending on the way you want to use the GPS.

When you find the configuration that is appropriate for you, make a note of the parts and part numbers you need.

Note that some component harnesses vary by device (VBD), and depends on what you are trying to connect to the bike in conjunction with the GPS.

When you are done, come back to this page and...

1. Select the appropriate GPS harness from the last row in Table 1.

2. follow the links for more information on the devices required and to select the VBD parts.



Table 1. Configuration Guides

 GPS with or without Stereo (no Cell phone)

  GPS and cell phone (with or without stereo)

 1800

 1800

Valkyrie

Valkyrie

 1500-stock

 1500-stock

 1500-with KTG retrofit

 1500-with KTG retrofit

 1200

 1200

 Venture

 Venture

 Voyager

 Voyager

 JMCB2003

 JMCB2003

 Harley Ultra Classic

 Harley Ultra Classic



Available Harnesses for the bikes listed above - this column

Available Harnesses for the bikes listed above - this column

 Manufacturer

 Model

 Required Harness
 Any  Has 1/8" diameter stereo headphone connector  95370. OEM power harness required
 Garmin  2730, 2820  95404
 Garmin  zumo  95438
 Garmin  nuvi  95370. OEM power harness required. , Cigarette lighter socket 95387 - optional
 Garmin  376  95405
 Lowrance  iWay  95374


 Manufacturer

 Model

 Required Harness
Garmin 2820 95412
 Garmin zumo-550  95423
 Garmin  nuvi

 95447. Provides mic and stereo connections only. OEM power harness required. Cigarette lighter socket 95387 - optional

OR

95446, Provides power, mic, and stereo connections. Not for use with nuvi traffic function.

Garmin
nuvi
2797 with modification



Here is the link to the GPS harnesses referenced to in the last row of Table 1: Multifunction GPS Harnesses (including iPhone).

The links below are for the VBD harnesses and assemblies referenced in the Configuration Guides. Click the links for drawings and instruction sheets:

Alert Device Harnesses

Stereo Device Harnesses

Switch Assemblies



The following table contains links to the assembly drawings, and installation instructions (user guides) of the specific GPS interface modules referenced in the Configuration Guides:

Part #

 Description

 MSRP (USD)

Drawing

 Guides

 Notes
More

95445

 CellSet, MC/GPS-AUX/ICS

 95.00

Switches GPS audio between Aux and ICS. No mic audio provided.

95436

 CellSet, MC/GPS - Harley

375.00

click link


Installation

Connect GPS audio and 1 alert device (radar detector)or two-way radio to Harley headset. Full stereo, with "SmartMute" and provides mic audio to GPSPrevious models and revisions

95415

 CellSet, MC/GPS-AUX/MIC

 95.00

Connects GPS audio to Aux input only. Provides mic audio

95413

CellSet, MC/GPS-ICS/MIC

 85.00

Connects GPS audio to intercom input only. Provides mic audioView Hookup notes for connecting zumo to a GL1800.

View General 1800 Hookup notes.

 95416

CellSet, MC/GPS-MIC

 60.00




Provides only mic audio to GPS

 95418

CellSet, Harley MC/GPS-MIC

 70.00




Provides only Harley mic audio to GPS

 95441

CellSet, MC/GPS3

 110.00


Switches GPS audio between Aux and ICS. Mic audio provided to GPSView Hookup notes for connecting zumo to a GL1800.

View General 1800 Hookup notes.

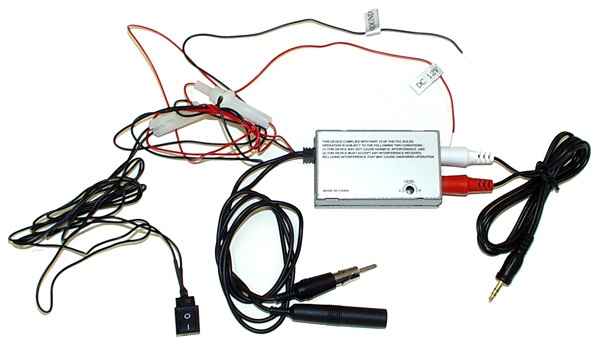

  92084

FM Modulator

 39.95

View


For bikes with FM radio, but no Aux audio input

  95518

GpsSwitchSet

 50.00




Manual switch device audio to two different aux inputs.





Here are links to other assemblies referenced in the Configuration Guides:

Auxiliary Audio Harnesses

Type 2 ICS Harnesses

Power Harnesses

SingleSet

DualSet

AuxSwitchSet2, 95375

IsoSet2, 95376

Harley Amp module and DualSet Sub Module
