Keying can be either Direct from a push button or Indirect through the bike's PTT system via a Kennedy Interface. Why the difference?

Direct keying is required if:

Your bike does not have an OEM PTT system already installed.

You need to alternately operate the bike's OEM two way radio (CB) and another two way radio device.

You want separate keying capability for both radios.

Indirect keying may be used if:

Your bike has an OEM PTT system installed and you will not operate the bike's OEM two way radio and another two way radio at the same time.

If both the bike's OEM two way audio and the alternate two way radio are turned "on", both will key when you press the bike's OEM PTT (unless you physically disconnect the PTT connector from the alternative radio).

DIRECT KEY SOLUTIONS

Bike	Photo	Part Number	Assembly Drawing	Installation Instructions	Cost (USD)	Notes

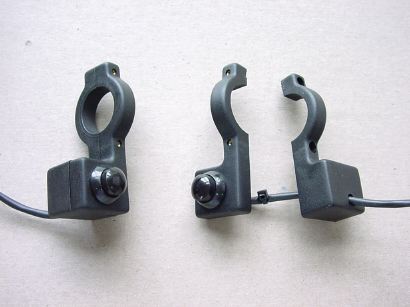

1800 Bracket mount		95110			50
1500 Bracket mount	see photos, above	95109			50

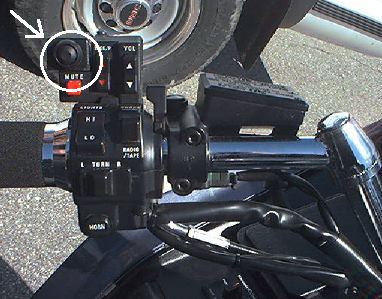

Voyager rider box		95113		none available	35	No mounting ears.
Unterminated pigtail	no photo	95327		none available	15	Ties to customer SPST, N.O, Momentary contact push button

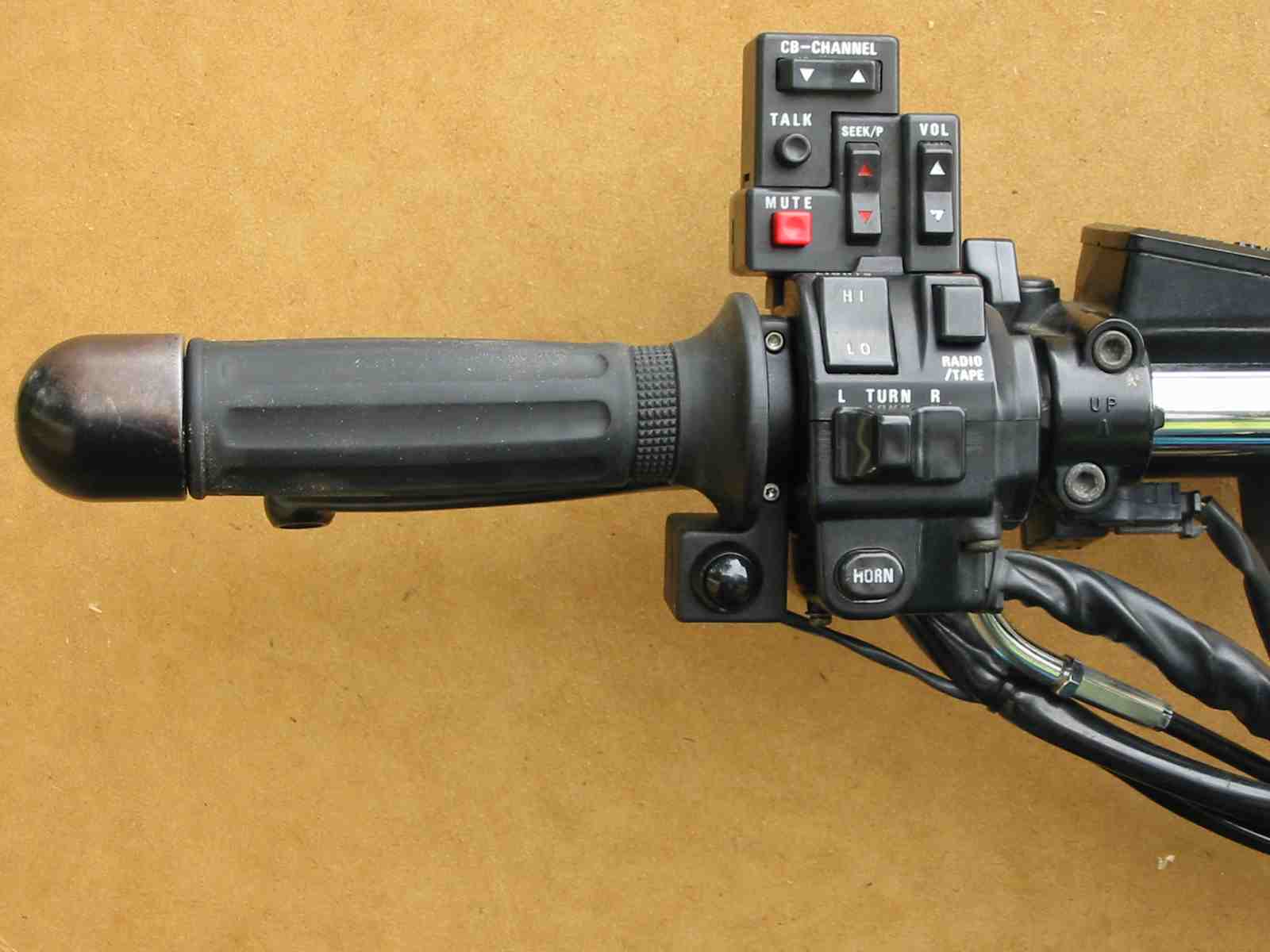

Handlebar mount 7/8" or 1" mount		95112	none available	none available	45.	Shown assembled, and before mounting. Kit includes Allen head screws. Wrench  provided. Click to see unit mounted on a voyager

Bike	Photo	Part Number	Assembly Drawing	Installation Instructions	Cost (USD)

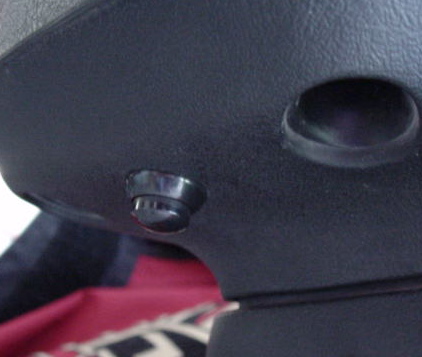

1500 or 1800 Speaker mount		95350			30
Box mount	no photo available	95277			35
Unterminated pigtail	no photo	95327		none available	15

INDIRECT KEY SOLUTIONS

Bike	Photo	Part Number	Assembly Drawing	Installation Instructions	Cost (USD)	Notes
1800		95107			65	Not recommended for keying aftermarket CB's.
1500	no photo available	95330			35

Bike	Photo	Part Number	Assembly Drawing	Installation Instructions	Cost (USD)
1800 Speaker mount		95259			30
1500 Speaker mount	see photo above	95276			30
1800 box mount	no photo available	95131			35
1500 box mount	no photo available	95351			35
